Aluminium die casting mold design is a vital process in manufacturing, ensuring the production of high-quality, reliable parts used in industries like automotive, aerospace, electronics, and consumer goods. A well-designed mold not only enhances the efficiency of the die-casting process but also reduces production costs and ensures consistent product quality.

This guide explores the intricate details of aluminium die casting mold design, focusing on essential principles like design for manufacturability (DFM), key factors influencing the design, the processes involved, and the tools used to achieve precision. By following these guidelines, manufacturers can achieve optimal results and avoid common pitfalls in mold design.

What is the Design for Manufacturability (DFM) in Die Casting?

Design for Manufacturability (DFM) is a methodical approach to designing parts and molds that ensures ease of manufacturing while minimizing costs and maintaining quality. In die casting, DFM focuses on aligning the design of a component with the capabilities and limitations of the die-casting process to prevent production inefficiencies and defects.

DFM is crucial in die casting design because it directly impacts the overall efficiency, cost-effectiveness, and quality of the production process. Poorly designed parts can lead to challenges such as incomplete fills, warping, or excessive material waste. By incorporating DFM principles from the outset, designers can address these issues proactively, reducing the need for costly modifications during production.
For instance, in aluminium die casting mold design, maintaining a uniform wall thickness ensures even cooling and minimizes stress within the material. This not only improves the structural integrity of the part but also reduces cycle times, enhancing productivity.

Gather Requirements Before the Aluminium Die Casting Design

Before beginning the design process for an aluminium die casting mold, gathering detailed requirements is crucial. This phase lays the foundation for a successful project by ensuring that all aspects of the design align with the desired outcome.

1. Die Casting Equipment

The equipment used in die casting significantly influences mold design. Machines vary in size, clamping force, injection pressure, and shot capacity. For instance, a high-pressure die-casting machine is ideal for creating intricate parts with tight tolerances, whereas a standard machine may suffice for simpler designs.

Understanding the equipment’s capabilities helps designers determine essential factors such as:

• Maximum part size and weight.
• Tolerances achievable during casting.
• Mold cavity configurations, including single-cavity or multi-cavity designs.

For example, if a mold is intended for use on a machine with limited clamping force, the design must minimize complex features that increase injection pressure.

2. Die Casting Part Materials & Designs

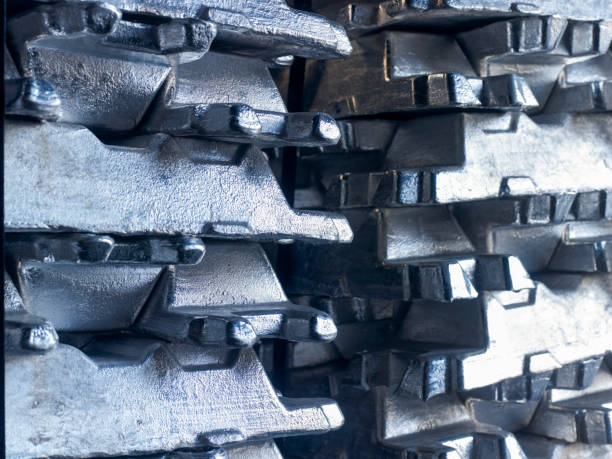

Material selection is another critical consideration. Aluminium alloys, such as A380 or ADC12, are popular choices due to their excellent fluidity, lightweight properties, and corrosion resistance. The choice of alloy influences various aspects of the design, including:

• Wall thickness: aluminium’s fluidity allows for thinner walls compared to other metals, reducing material usage and weight.
• Draft angles: aluminium’s shrinkage characteristics require specific draft angles to ensure smooth ejection from the mold.

Additionally, part geometry must be carefully planned. Complex designs with undercuts, internal cavities, or sharp corners may require advanced tooling techniques or additional inserts, increasing costs and production time. Simplifying the design where possible enhances manufacturability.

3. Budget

Budget constraints significantly impact the aluminium die casting mold design process. Factors such as mold complexity, material costs, and machine time must be carefully considered. Designers often aim to strike a balance between functionality and cost-efficiency by:

• Limiting the number of intricate features that add complexity.
• Exploring multi-cavity molds to produce multiple parts simultaneously, reducing overall production costs.
• Selecting cost-effective materials and processes that meet project requirements without exceeding the budget.

4. Delivery Time Requirements

Delivery timelines are a key consideration in manufacturing projects. Tight deadlines necessitate careful planning to avoid delays in mold making, testing, and production. By understanding delivery requirements upfront, designers can:

• Allocate sufficient time for each phase of the project, including mold fabrication and trial runs.
• Prioritize rapid prototyping or simplified designs for urgent projects.
• Coordinate closely with suppliers to ensure timely availability of materials and components.

Key Factors in Aluminium Die Casting Design

Aluminium die casting is a highly efficient manufacturing process, but its success depends on precise mold design. Each aspect of the mold contributes to the casting’s structural integrity, surface finish, and ease of production. Below is a detailed exploration of the critical factors to consider when designing aluminium die casting molds.

Parting Line

The parting line is the imaginary line or plane where the two halves of the mold meet. Its placement directly impacts the manufacturing process and the final product’s quality. A poorly positioned parting line can cause visible seams, flash (excess material), or weaken the structural integrity of the part.

When designing the parting line, engineers must consider factors such as ease of ejection, minimal machining, and optimal metal flow. Typically, the parting line aligns with natural divisions or contours in the part’s geometry. Advanced simulation tools are often used to visualize and adjust the parting line during the design phase, ensuring precision and reducing potential issues during production.

Shrinkage

Shrinkage occurs when molten aluminium cools and solidifies, causing a slight reduction in volume. This is a natural phenomenon in metal casting and must be accounted for during mold design. aluminium typically shrinks by 0.5-1.0%, but the exact percentage depends on the alloy and casting conditions.

If not properly managed, shrinkage can lead to warping, cracks, or internal stresses in the final product. To address this, mold dimensions are designed slightly larger than the intended part size to compensate for shrinkage. Uniform cooling across the mold is also crucial to prevent uneven shrinkage, which can distort the part’s shape. Simulation software helps predict shrinkage behavior and ensures that the mold design accommodates these changes.

Draft

Draft is the slight taper or angle applied to vertical surfaces in the mold. It allows the cast part to be easily ejected without sticking or causing damage to the mold. Insufficient draft angles can lead to surface defects, increased wear on the mold, and production delays.

For aluminium die casting design, a draft angle of 1-3 degrees is generally sufficient. However, textured surfaces or deeper cavities may require larger angles to ensure smooth ejection. By carefully analyzing the geometry of the part, designers can apply the optimal draft angle to maintain efficiency and reduce manufacturing defects.

Wall Thickness

Consistent wall thickness is a cornerstone of successful aluminium die casting. Variations in wall thickness can cause uneven cooling, leading to defects such as porosity, shrinkage cavities, or warping. Thin walls may lack strength, while thick sections can result in longer cooling times and increased material costs.

In most aluminium die castings, wall thickness typically ranges between 2-4 mm, though specific requirements may vary based on the part’s application. Gradual transitions between thick and thin sections help maintain uniform material flow and cooling rates. Incorporating design elements like ribs can add strength to thinner walls without increasing weight.

Fillets and Radii

Fillets and radii are curved transitions between surfaces, replacing sharp corners and edges in the design. Sharp corners concentrate stress, making the part more susceptible to cracking or breaking during use. Additionally, sharp edges disrupt material flow during casting, increasing the likelihood of defects.

By incorporating fillets with radii equal to 25-50% of the wall thickness, designers can enhance the part’s durability and improve the casting process. Smooth transitions not only reduce stress concentrations but also improve the aesthetic quality of the final product. Fillets also facilitate easier mold filling and reduce turbulence during the injection of molten aluminium.

Bosses

Bosses are cylindrical projections often used for assembly purposes, such as accommodating screws or bolts. They are essential for creating mounting points in the part but must be designed carefully to prevent structural weaknesses or casting defects.

To ensure the boss’s stability, it is supported with ribs or gussets that distribute stress evenly. The height-to-diameter ratio is optimized to prevent shrinkage porosity or distortion. Maintaining uniform material flow around the boss during casting helps achieve a strong and defect-free feature.

Ribs

Ribs are thin, vertical features added to parts to reinforce thin walls or provide additional strength. They help minimize weight while enhancing the structural integrity of the casting.

When designing ribs, their thickness should be around 50-60% of the adjoining wall thickness to avoid shrinkage defects. Rounded edges and consistent draft angles are applied to ensure proper material flow and easy ejection from the mold. Ribs are strategically placed to reinforce stress-prone areas and improve the overall performance of the part.

Undercuts

Undercuts are recessed features or protrusions that obstruct the straightforward removal of the cast part from the mold. Addressing undercuts requires additional mold components, such as sliding cores or collapsible inserts, which add complexity and cost to the design.

To simplify production, designers aim to minimize or eliminate undercuts whenever possible. For necessary undercuts, precision planning ensures that the added mold mechanisms operate smoothly without damaging the part or mold. Simulation tools can identify potential undercut challenges early in the design process, allowing for efficient problem-solving.

Holes and Windows

Holes and windows are common features in aluminium die cast parts, serving functional or aesthetic purposes. However, poorly designed holes can compromise the part’s strength or create weak points that are prone to cracking.

Designers position holes with adequate spacing from edges and other features to maintain structural integrity. Core pins or inserts are used to create these features during the casting process. Proper cooling channel design around these areas ensures uniform solidification, minimizing the risk of defects.

Inserts

Inserts are components made from different materials, often used to enhance the performance of die cast parts. For example, steel inserts can increase wear resistance or conductivity in specific areas.

The design must ensure that inserts are securely positioned and do not shift during casting. Pre-heating inserts before pouring molten aluminium improves bonding and reduces thermal stress. Careful alignment and placement ensure that inserts enhance the part’s functionality without compromising its structural integrity.

Thread Forming

Threads can either be cast directly into the part or machined after casting. Molded threads save time and cost, but they require precise design to ensure their accuracy and functionality.

When casting threads, designers include draft angles to facilitate easy ejection. Cooling systems around threaded areas prevent defects like warping or cracking. For high-strength or high-precision requirements, secondary machining is often employed to refine the threads.

Slots and Grooves

Slots and grooves are integral features for guiding or positioning components in assemblies. If not designed properly, they can lead to misalignment or compromise the structural integrity of the part.

Gradual transitions, uniform draft angles, and adequate spacing between slots and other features ensure smooth material flow during casting. Simulation tools help predict any potential issues, allowing designers to refine the geometry before production.

Ejector Design

Ejector pins are critical for removing the cast part from the mold. Improper placement or sizing of ejector pins can result in defects like deformation, surface marks, or sticking.

Pins are strategically placed to distribute ejection force evenly across the part. Avoiding visible surfaces for pin placement helps maintain the product’s aesthetic quality. Designers also consider the part’s weight and geometry to determine the appropriate size and number of ejector pins.

Processes of Aluminium Die Casting Design

Designing molds for aluminium die casting involves a series of carefully planned steps that ensure precision, efficiency, and quality. Each stage plays a crucial role in determining the final outcome of the casting process, and understanding them in detail is essential for successful project execution.

Material Selection

Material selection is the foundation of the aluminium die casting mold design process. The choice of aluminium alloy significantly affects the performance and durability of the final product. Aluminium alloys like A360 and A380 are widely used due to their excellent fluidity, strength-to-weight ratio, and corrosion resistance.

For example, A360 offers superior corrosion resistance, making it ideal for marine and outdoor applications, while A380 is favored for its excellent machinability and dimensional stability, which suit automotive and electronic components.

The selected material must also be compatible with the mold material. Aluminium’s high thermal conductivity necessitates the use of robust materials such as H13 tool steel for the molds. This ensures that the mold can withstand the high temperatures and pressures involved in the die casting process without deforming or degrading over time. Selecting the right material not only enhances the quality of the final part but also minimizes production challenges and defects.

Design Draft

The design draft is the stage where initial concepts transform into detailed, actionable plans. Using advanced computer-aided design (CAD) software, designers create 3D models of the mold and the component to be cast. This digital representation provides a comprehensive visualization of the part’s geometry and allows for detailed analysis of potential issues such as uneven cooling, improper wall thickness, or inadequate draft angles.

Key considerations during this stage include maintaining uniform wall thickness to reduce stress and cooling time, optimizing draft angles to facilitate part ejection, and precisely positioning the parting line to minimize visible seams on the final product. This phase often requires close collaboration between designers and engineers, who provide insights into manufacturability and tooling feasibility. The design draft serves as the blueprint for the subsequent steps, ensuring that the project moves forward with a solid foundation.

Die Casting Mold Making

Once the aluminium die casting mold design draft is finalized, the mold-making process begins. This stage involves the precise fabrication of mold cavities and cores using advanced manufacturing techniques like CNC machining and electrical discharge machining (EDM). These methods allow for high levels of accuracy, ensuring that the mold meets the specified tolerances and can produce parts with intricate details.

High-strength tool steels such as H13 or SKD61 are commonly used to construct molds, as they can endure the extreme pressures and temperatures of the die casting process. Cooling channels are integrated into the mold during this stage to manage heat dissipation, ensuring consistent cooling of the molten aluminium.

Inserts, such as core pins, are also added to the mold to create complex features like holes or threads in the cast part. This meticulous fabrication process ensures that the mold is durable, reliable, and capable of delivering high-quality results over multiple production cycles.

Mold Trial

The mold trial is a critical testing phase where the fabricated mold undergoes a series of trial runs to validate its performance. During the initial testing, molten aluminium is injected into the mold under controlled conditions to identify potential issues such as incomplete fills, porosity, or uneven cooling. The results of these trials provide valuable insights into the mold’s functionality and highlight areas that may require adjustments.

For example, modifying the gating system can improve the flow of molten aluminium, while resizing cooling channels can address temperature-related defects. Once the mold consistently produces parts that meet the desired specifications, it is approved for mass production. This rigorous testing ensures that the custom mold and design is optimized for efficiency and quality, reducing the likelihood of defects during large-scale manufacturing.

Aluminium Die Casting Design Tools

The mold design of aluminium die castings has been greatly enhanced by the use of modern tools and software, which allow for higher precision, improved efficiency, and better overall outcomes. These tools play an integral role in every stage of the design process, from initial conceptualization to final validation.

Computer-aided design (CAD) software is an essential tool for creating detailed 3D models of both the mold and the component to be cast. Programs such as SolidWorks and AutoCAD enable designers to visualize complex geometries and simulate various scenarios, such as material flow and cooling patterns. By identifying potential issues in the virtual environment, CAD software reduces errors and shortens the design cycle, making it a fundamental part of the process.

Simulation software is another invaluable tool, allowing manufacturers to predict and analyze the behavior of molten aluminium during casting. Programs like MAGMASOFT and Flow-3D provide detailed insights into material flow, cooling rates, and potential defects such as porosity or shrinkage. These simulations enable designers to optimize features like gating systems and cooling channels, ensuring a smooth and defect-free casting process.

Finite element analysis (FEA) tools are used to assess the mechanical performance of the mold and the cast part under operational conditions. These tools evaluate factors such as stress distribution and thermal resistance, helping designers enhance critical elements like wall thickness and rib placement.

Additionally, inspection and measurement tools such as coordinate measuring machines (CMM) and laser scanners ensure that the fabricated mold meets the design specifications. These tools verify dimensions, alignments, and surface finishes, ensuring the highest level of precision and functionality.

Conclusion

Designing aluminium die casting molds is a detailed process that requires precision and understanding of materials and design principles. Each step, from selecting the right materials to testing the mold, ensures the production of high-quality parts with minimal defects. By focusing on factors like parting lines, draft angles, and cooling systems, manufacturers can create molds that deliver consistent and efficient results.
